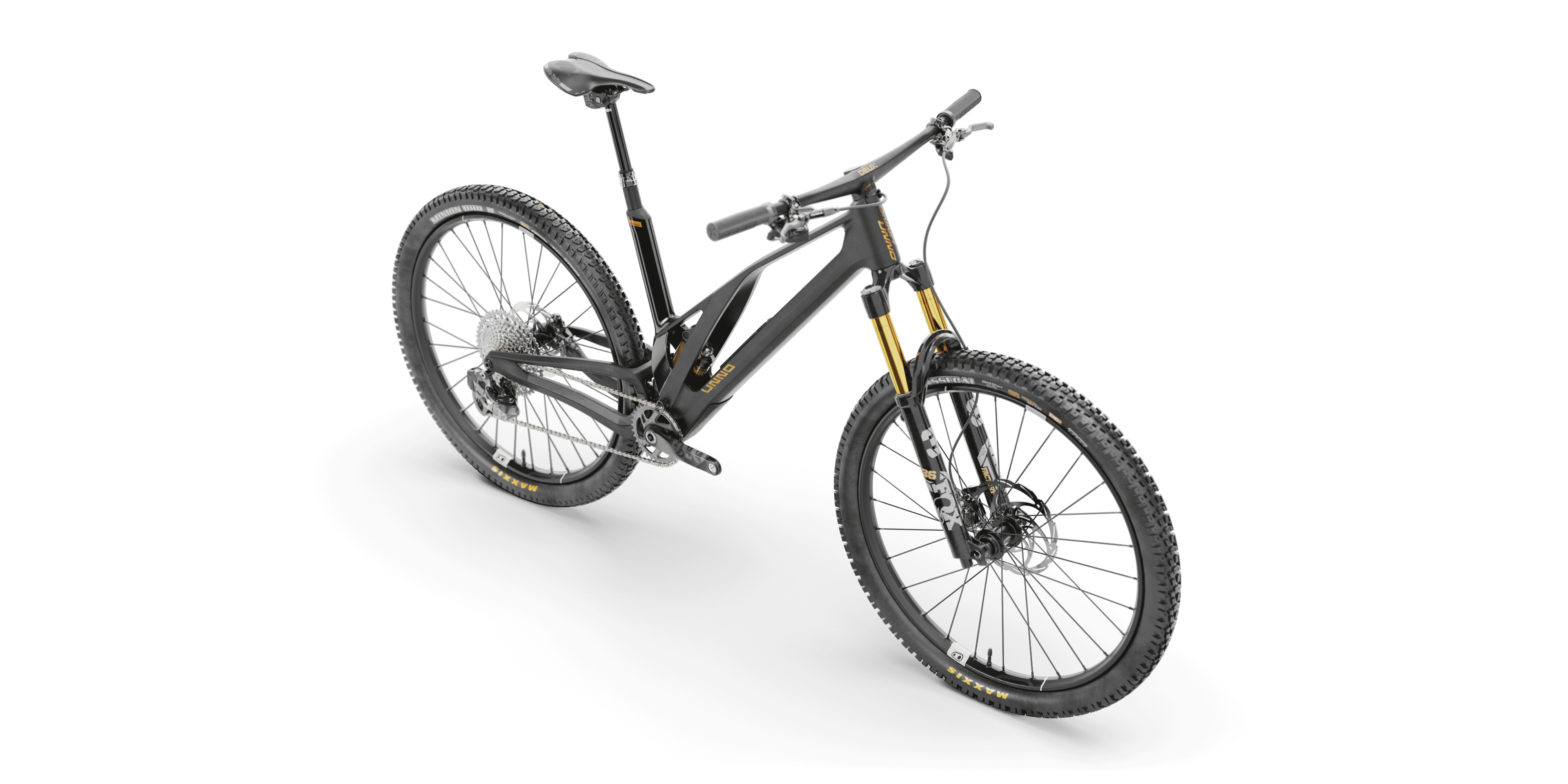

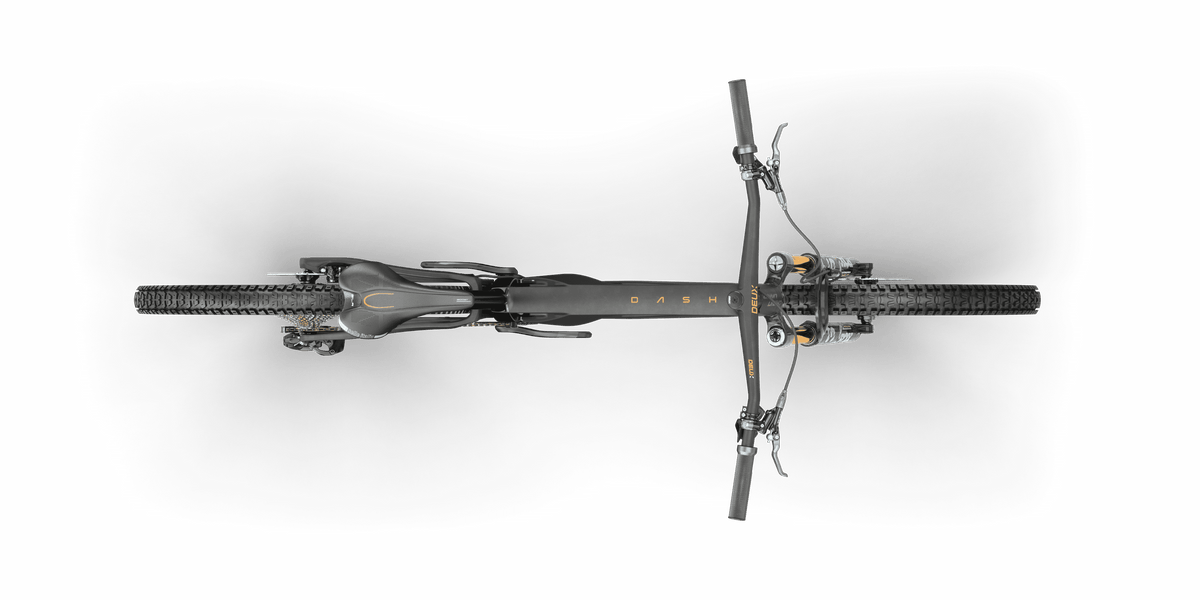

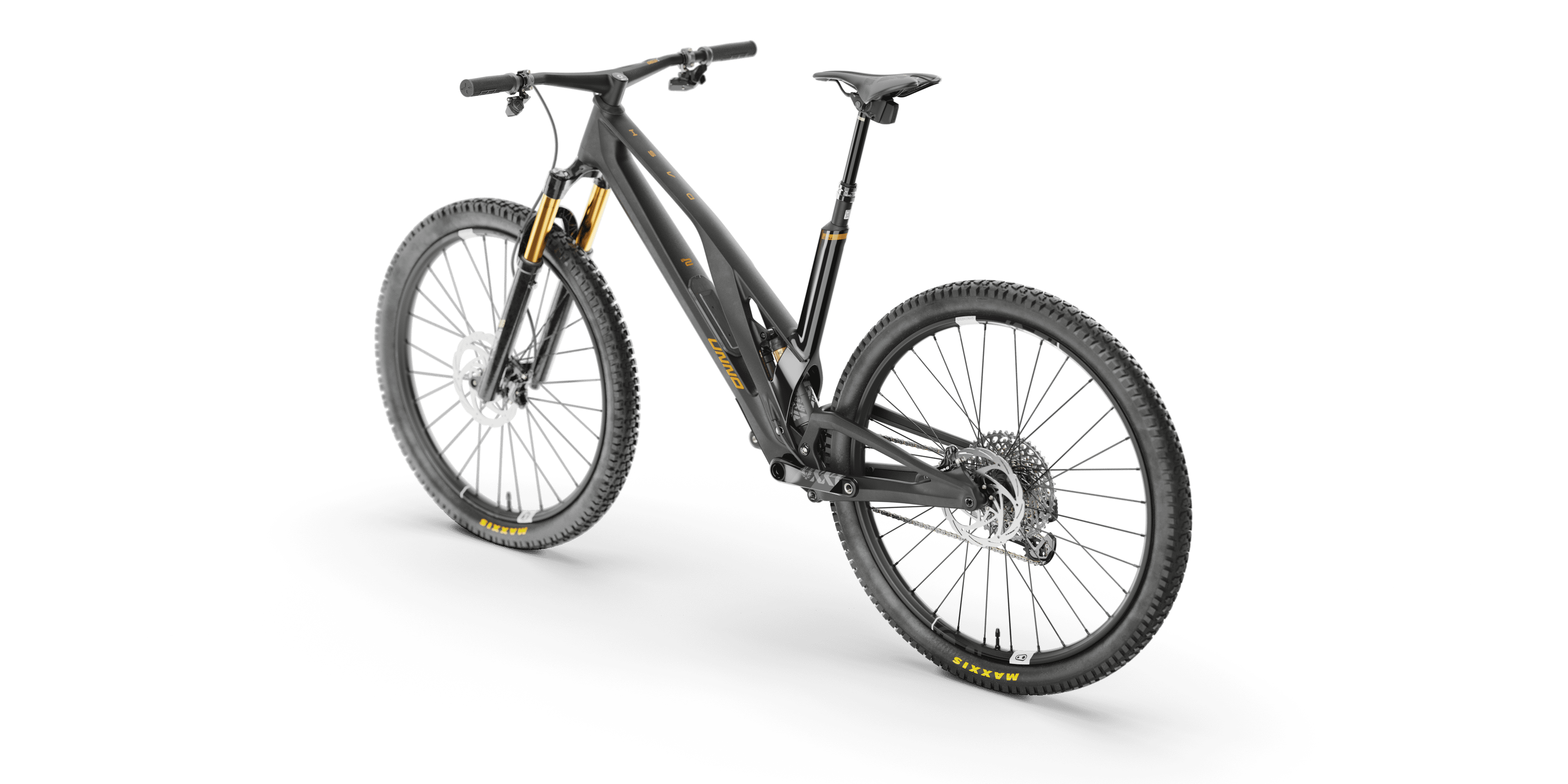

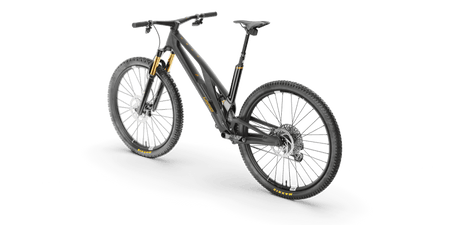

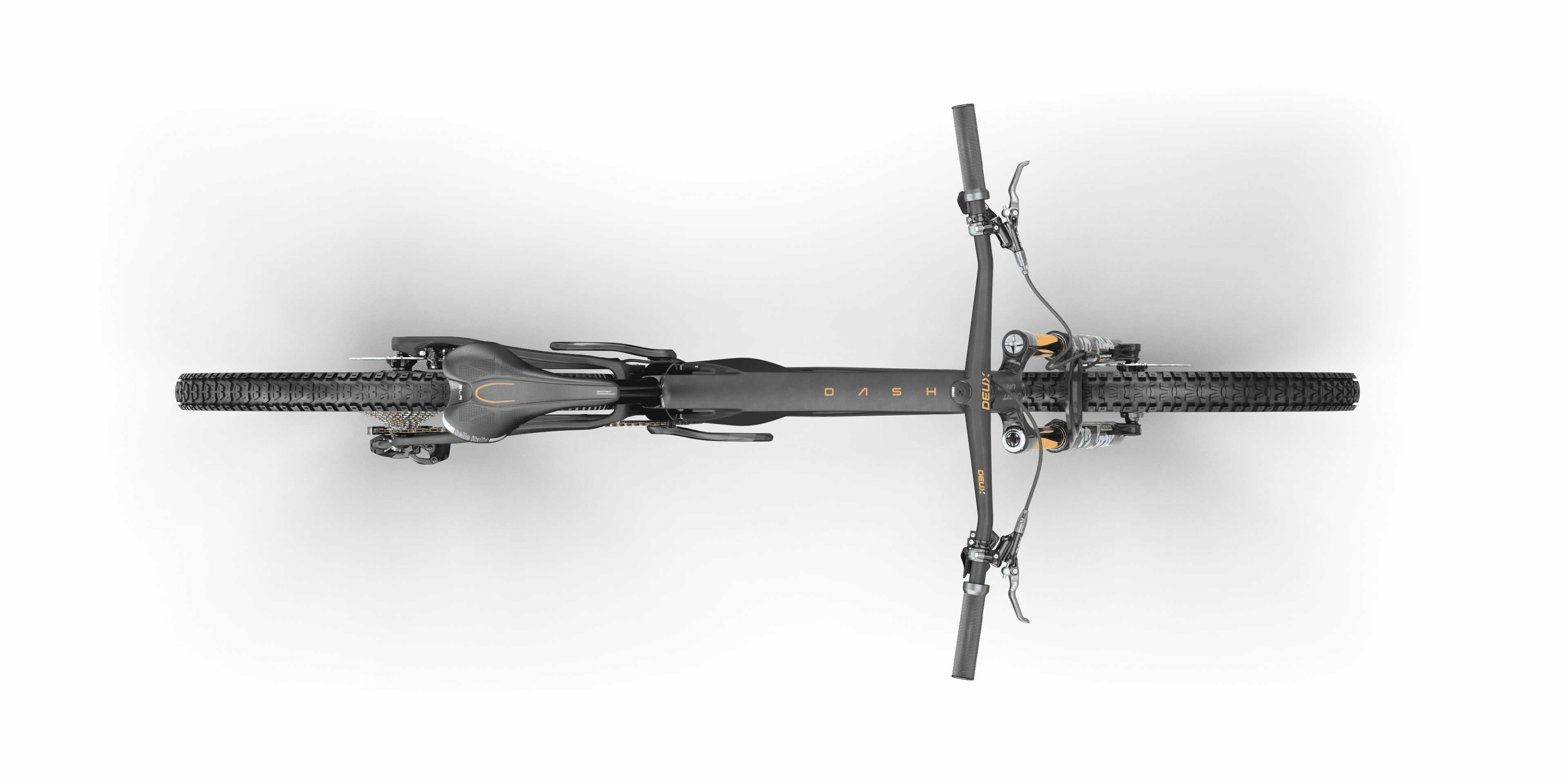

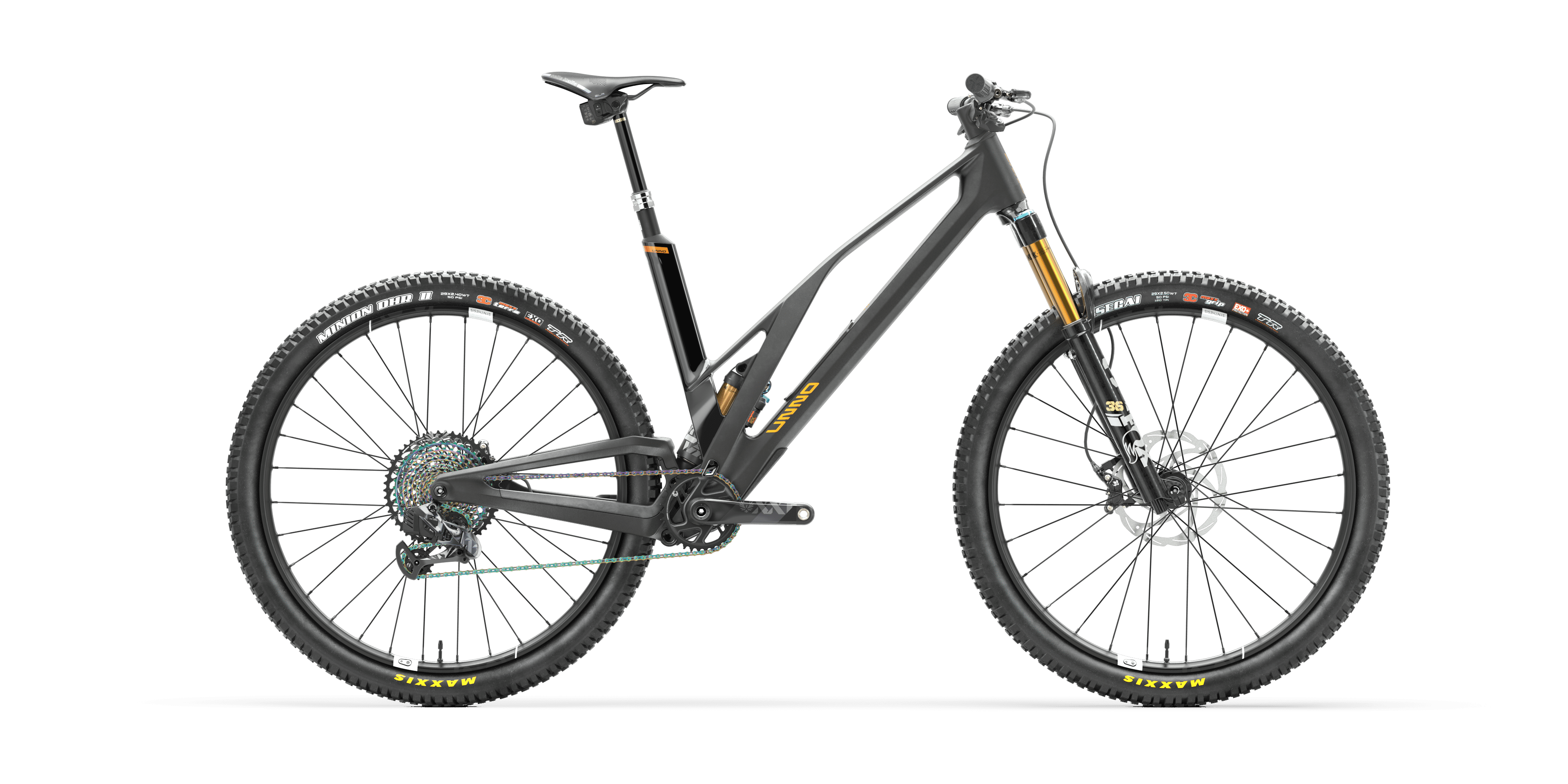

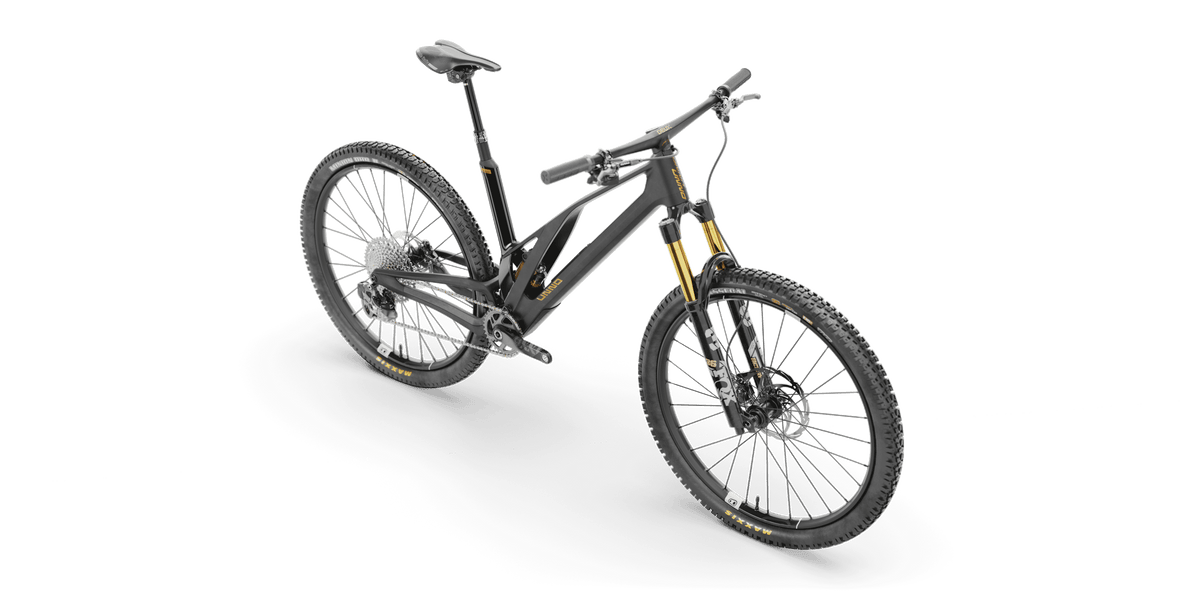

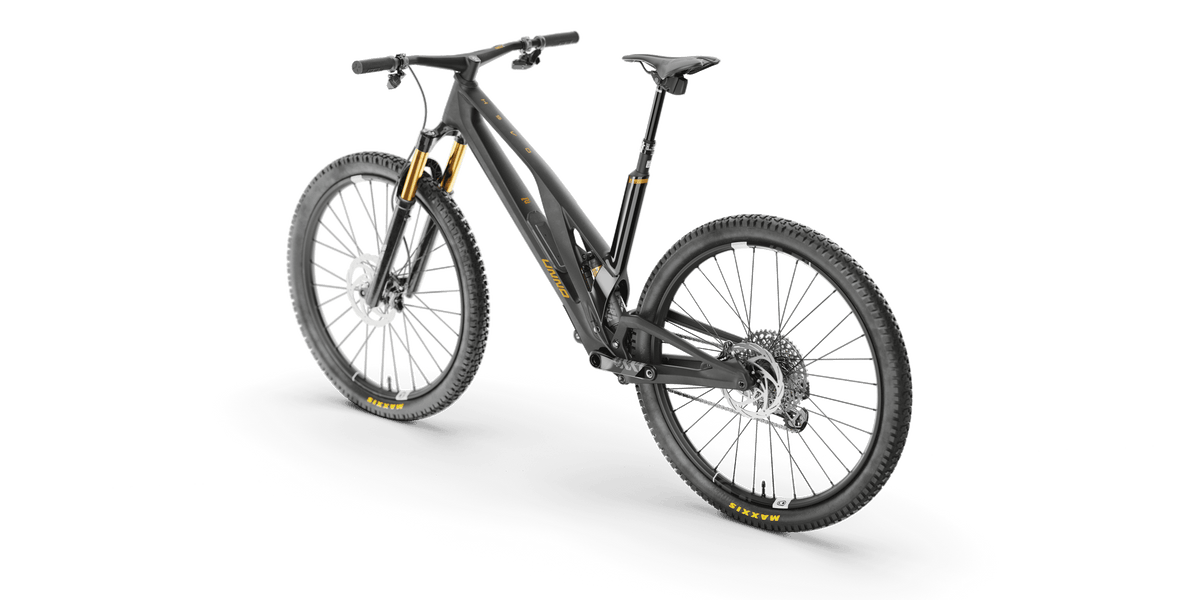

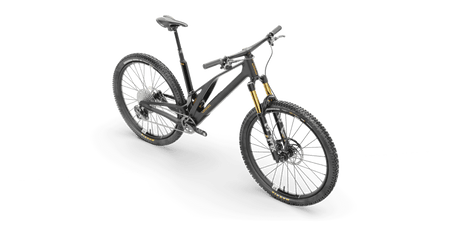

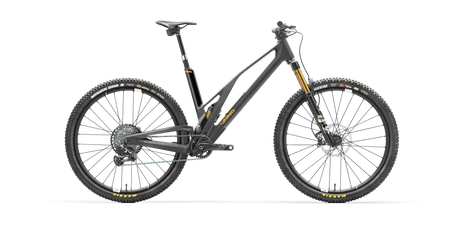

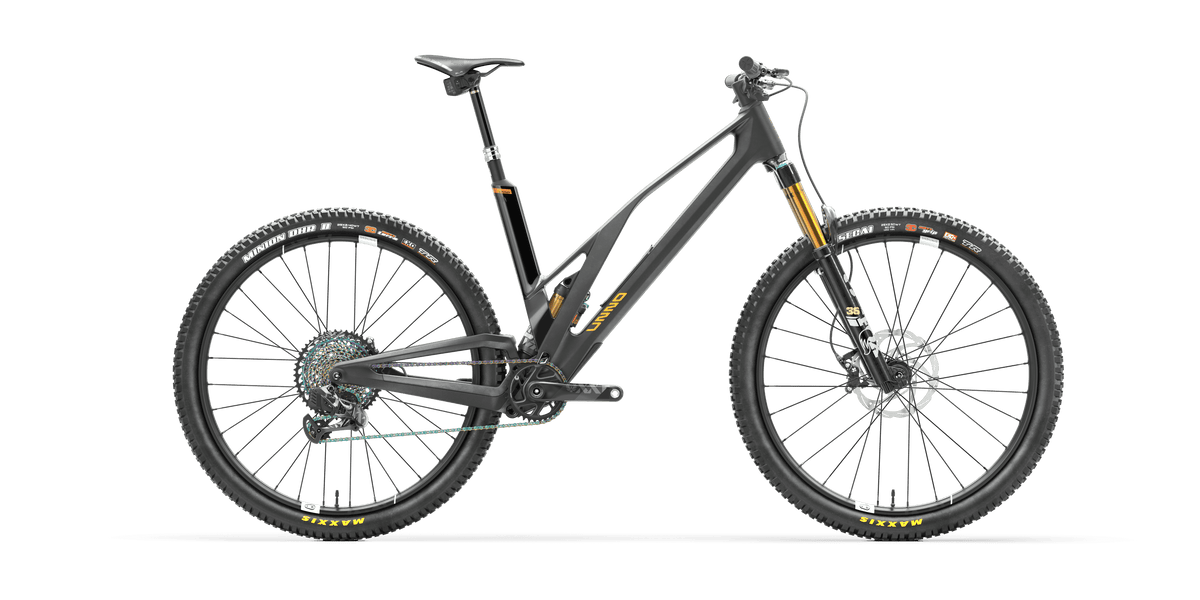

Dash
140mm of Mountain Bike perfection
ICONIC SINCE DAY ZERO, THE DASH COMES FULLY REDEFINED. UNNO INCREASED THE TRAVEL BY 10MM AND USED THE SAME DISRUPTIVE ENDURO PLATFORM, BUT IN BIGGER WHEELS AND LIGHTER PACKAGE. THE RESULT? ONE OF THE MOST STABLE AND AGGRESSIVE ALL MOUNTAIN BIKES EVER DEVELOPED. CROWN THE TRAIL EMPIRE. 150/140MM TRAVEL | 29” WHEELS
SPECS Weight: TBC 140mm rear travel Fox Float Factory X2 air shock Double Row EnduroMAX bearings Down Tube protector Rear axle: Boost 148, 12mm thru-axle Rear brake mount type: Post Mount Rear rotor: 180mm Max rear tyre width: 2.6” Recommended fork travel: 150mm Wheel size: 29” Shock size: 230x57.5mm Shock tune: Custom Seatpost diameter: 31.6mm Max seatpost insertion: 235/250/280mm Headset: IS52 - ACROS Aix540 Integrated chainguide
FACTORY RACING SPECS
FRAME UNNO DASH Carbon fibre monocoque with 140mm of rear travel. Virtual pivot suspension system. Integrated chain guide and seat tube clamp. Down tube protector. EnduroMAX Bearings. Internal cable routing. Boost thru axle 12x148. Post Mount brake system. Max tire width: 2.5”. Oceanworks recycled plastic parts and rubber protectors. Recommended sag: 35% (+/- 5%). FORK
FORK FOX 36 FACTORY 150mm travel. Kashima coating. Grip 2 damper. 15x110 axle. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.
SHOCK FOX FLOAT X2 FACTORY 230x57.5mm. Kashima Coating. 2-pos lever. VVC Rebound. Adjustmetns: HSC, LSC, HSR, LSR.
DERAILLEUR SRAM XX1 AXS 12-speed Eagle technology. Battery: EP Powerpack 1.
TRIGGER SRAM XX1 AXS Wireless. MMX.
CHAIN SRAM XX1 EAGLE SRAM Eagle Chainiring 34T.
CASSETTE SRAM XX1 - XG 1299 500% range. 10-50T.
CRANKSET SRAM XX1 CARBON Carbon B148 DUB 170mm Black 34T

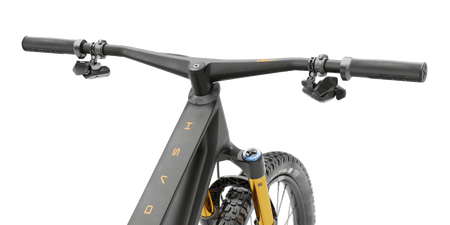

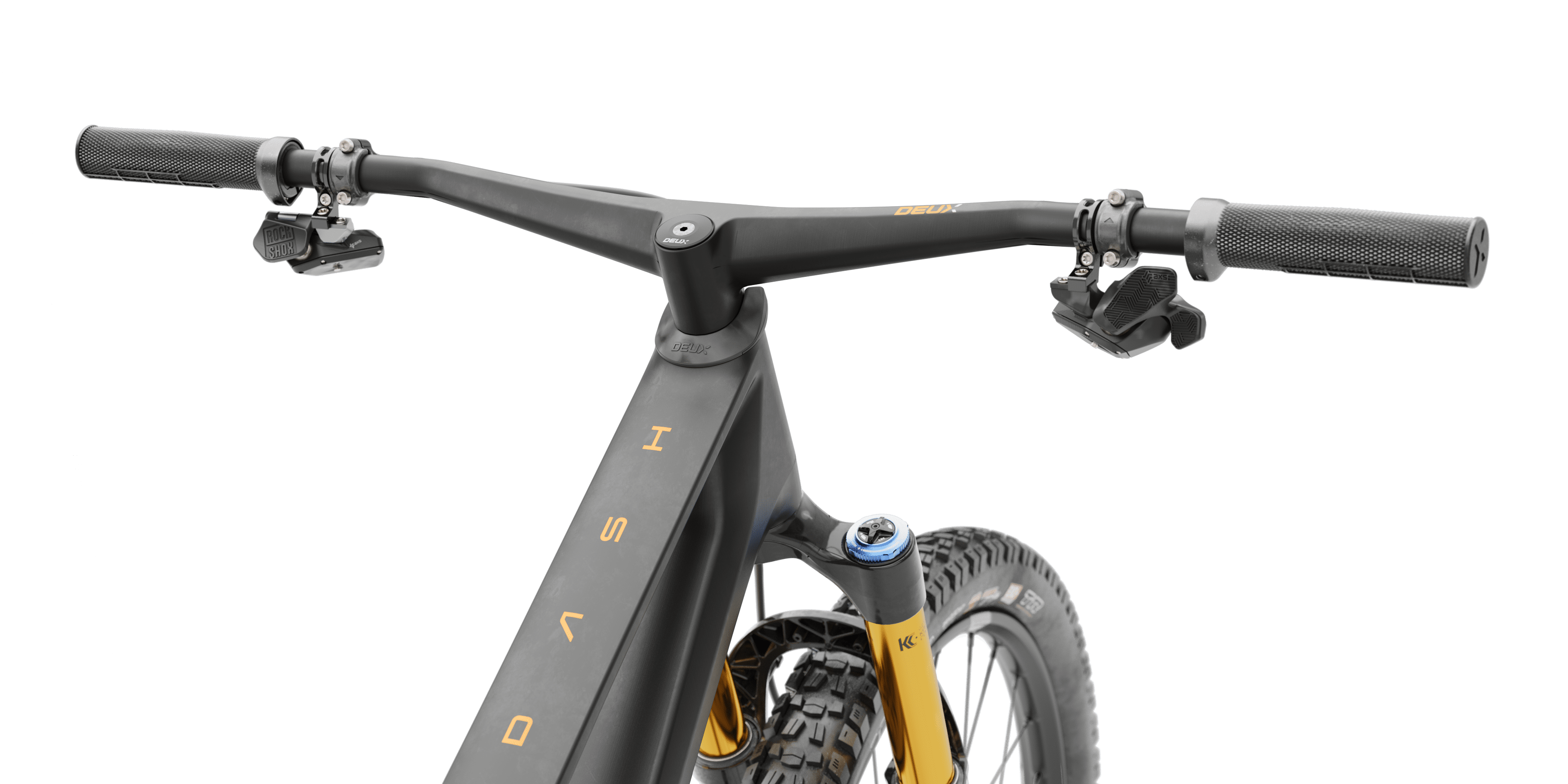

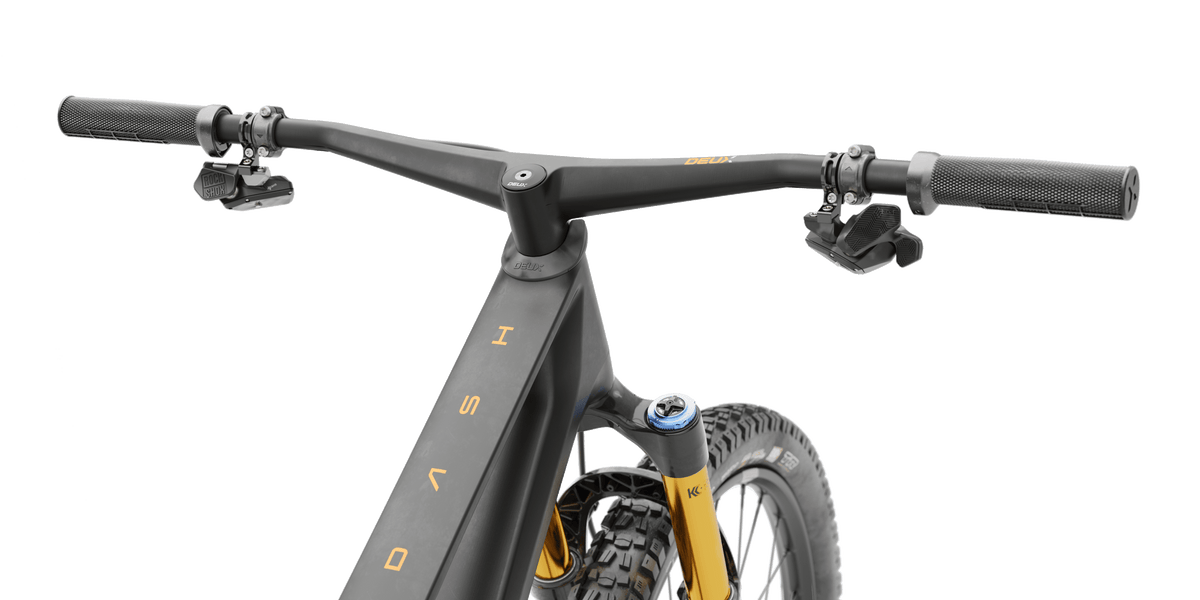

COCKPIT DEUX ENDURO BARS Integrated bars and stem. No-bolts design. Internal fork tube clamp. 800mm width, 20mm rise, 40mm stem.
WHEELS CRANKBROTHERS SYNTHESIS Carbon Fiber. With Synthesis hubs. SAPIM spokes, 32 and 28 front. 31.5 inner width rims.
BRAKES FORMULA CURA 4 4X18mm pistons on caliper. SRAM Matchmaker. Sintered pads. Axial master cylinder.
ROTORS FORMULA CURA ROTORS 203mm front and 180mm rear. Extreme lateral stiffness, anti-noise design and anti- vibrations technology.
FRONT TYRE MAXXIS ASSEGAI 29x2.50WT, 3CMaxxGrip, EXO+, TR. REAR TYRE MAXXIS MINION DHR II 29x2.40WT, 3CMaxxTerra, DD, TR.
SEAT POST ROCK SHOX REVERB AXS S1: 125 / S2: 150 / S3: 175mm travel.
SADDLE SELLE ITALIA SLR BOOST Carbon rails.
